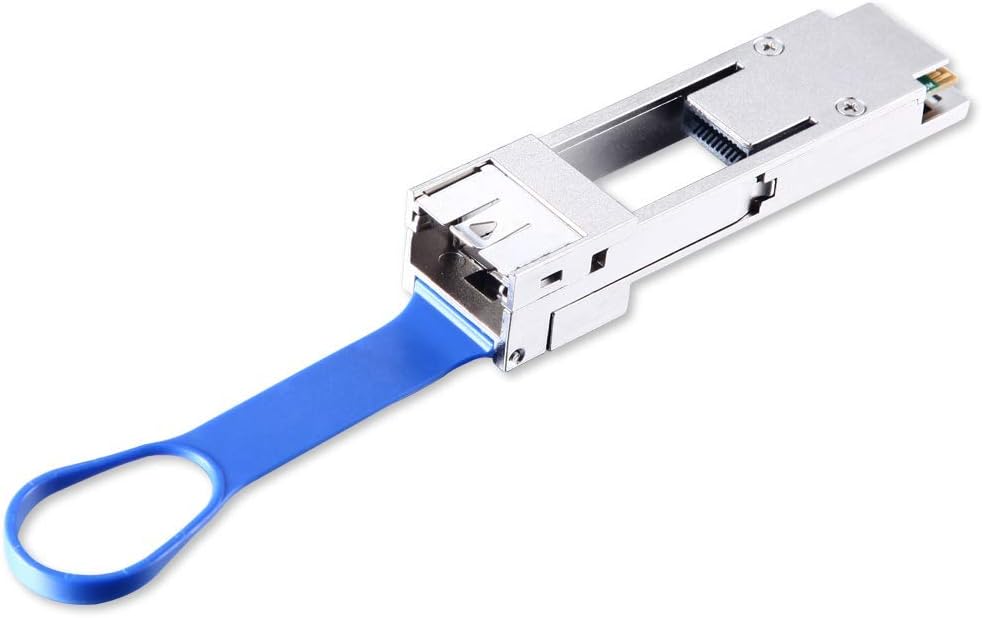

QSA Adapter - 100G QSFP28 to 25G SFP28 Converter Module, for Cisco CVR-QSFP28-SFP28 Mellanox, Dell, Juniper, Arista, Extreme and More QSFP28 to SFP28

• ＋ Compatibilité avec Cisco, Mellanox, Dell, Juniper, Arista et Extreme
• ＋ Permet de convertir des connexions QSFP28 en SFP28
• ＋ Solutions de réseau flexibles

description du produit

the 10gtek qsfp28 to sfp28 adapter (qsa) module offers 25 gigabit ethernet connectivity for quad small form-factor pluggable (qsfp28)-only platforms. it allows smooth and cost-effective migration to 100 gigabit ethernet by providing an option to use lower-speed enhanced small form-factor pluggable (sfp28) modules in empty qsfp28 ports or when the other end of the network is running at lower speeds. the qsa module interoperates with all major optical modules and direct attached copper cable vendors. its design assures minimum loss on the conversion path between the qsfp28 cage and the sfp28 receptacle. the high-speed data channel of the sfp28 receptacle is connected to lane 1 of the qsfp28 connector. the three remaining channels on the qsfp28 connector are not connected. with this adapter, you have the flexibility to use any sfp28 module or cable to connect to a lower-speed port on the other end of the network. this flexibility allows a cost-effective transition to 100 gigabit ethernet by maximizing the use of high-density 100 gigabit ethernet qsfp28 platforms. this adapter supports all sfp28 optics and cable reaches. compatible switch models and sfp28 modules.

Features

• trouble-free installation and network bring-up
• compliant to industry standards: sff-8665
• compliant to industry standards: sff-8432
• precision process control for minimization of pair-to-pair skew
• 1 independent duplex channels operating at 25gbps data rates
• all-metal housing for superior emi performance
• 100ohm differential impedance system
• operating case temperature: -20 to 85℃
• low insertion loss
• low crosstalk
• secure latching mechanism
• rohs compliant
• compatible with rohs
• single 3.3v power supply

Applications

• low emi radiation
• switches, servers and routers
• telecommunication and wireless infrastructure
• test and measurement equipment
• networked storage systems
• data center networks

• 【Wide Compatibility】This adapter supports all SFP28 optics and cable reaches, such as SFP28-SR, SFP28-LR, SFP28 Passive Copper Cable and SFP28 Active Optical Cable. I2C read port information comes from SFP28 port module, not QSA Module. So it can be used on any brand switches, servers and routers with QSFP28 port, no compatibility restrictions.
• 【Smooth Speed Migration】10Gtek QSA adapter Module offers 25 Gigabit Ethernet connectivity for QSFP28-only platforms. It allows smooth and cost-effective migration to 100 Gigabit Ethernet by providing an option to use lower-speed.
• 【Convenient and Flexible Use】With QSA adapter, you can flexibly use any SFP28 module or cable to connect to a lower-speed port on the other end of the network with low insertion loss and crosstalk. Plug and play, without any setup.
• 【QSA vs QSFP28 Breakout Cable】Not all the 100G cards and switches can be split into 4 x 25 Gb mode, for example, the Mellanox QSFP28 cards do not support the QSFP28 to SFP28 breakout, but they support QSA. And QSA can be used for longer transmission distances than QSFP28 Breakout Cable.
• 【What You Get】1x cost-effective QSFP28 to SFP28 QSA adapter. Backed by 10Gtek 30 Days Free-returned, 3-Year Free Warranty and Lifetime Technology Support. 10Gtek is a manufacturer of DAC/Transceiver/AOC/NIC/Media Converter, customized service also is available.
